Cavro XLP Fully Programmable Syringe Pump

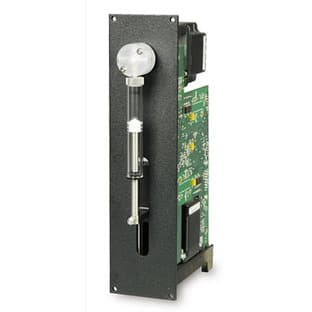

Cavro® XLP 6000 pump

• The most versatile 60mm stroke OEM syringe pump
• more flexibility with wide range of syringe volumes and valve options.
• robust and reliable workhorse
• easy to integrate

The Cavro XLP 6000 Pump is a 60 mm stroke syringe pump that is fully programmable and can be used as a stand alone module or, when controlled by an external computer or microprocessor, can automate pipetting, diluting and dispensing operations in the 5 μl to 25 ml range.
The pump has been designed for ease of integration and low maintenance. The new hardware and firmware automatically detects the communication interface (RS 232, RS 485, or CAN) and communication protocol (OEM, Data Terminal). The Cavro XLP 6000 Pump also allows the user to reconfigure the pump to run different valve types and at different baud rates. The two digital inputs and three outputs for TTL level signals can be used for synchronization with external devices. Multi-pump communication is possible through RS 485 or CAN interface, addressing up to 15 modules through a single communication bus.

The Cavro XLP 6000 Pump family of products is UL recognized (standard UL61010A-1) and bears the UL designation label.
