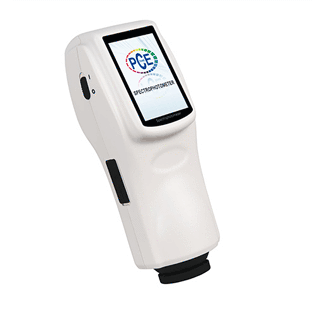

PCE-CSM 10 Colorimeter

The colorimeter PCE-CSM 10 gives highly accurate results within various colour spaces (CIE LAB, XYZ, Yxy, LCh, LUV, LAB&WI&YI) which can then be used as reference values while other readings can be saved as samples for later comparison. It is possible to store up to 1,000 reference values and up to 25,000 samples to the device’s memory.

Measurement values can be read out from the 3.5" TFT touch screen display. The measured data can be transferred to a PC for further analysis via the USB interface. The software necessary to do so is included.

The PCE-CSM 10 has a measuring geometry of 8 °/d and a measuring aperture with a diameter of Ø 8 mm. Its sensor is a silicon photoelectric diode. The colorimeter has a wavelength range of 400 to 700 nm and a reflection factor range of 0 to 200 %. The light source, a combined LED, can take more than 1.6 million measurements, which means that it will last approximately 5 years. Numerous functions make the colorimeter suitable for a wide range of applications.

The PCE-CSM 10 colorimeter comes with a mains adaptor as well as a rechargeable lithium-ion battery, two calibration plates (black / white), a protective cover, a USB cable, a wrist band, a PC software, an instruction manual and an aluminium carrying case.
